Geleiderol multi-V-riem – Mercedes R129 W140 R170 R230 W202 W210 etc.

Ombuigrol multiriem – Mercedes R129 R170 R171 R230 W202 W203 W204 W210 W211 W220 W221 etc. – M112 M113 M272

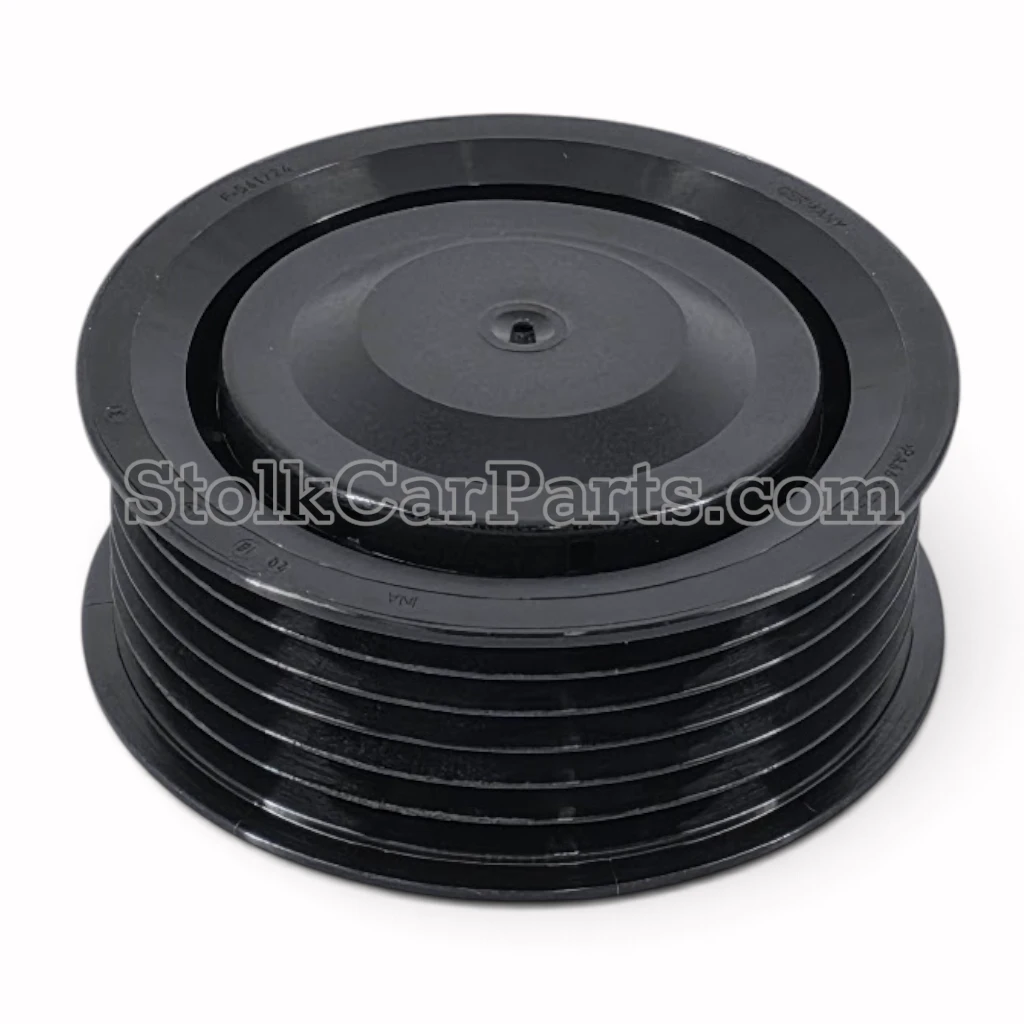

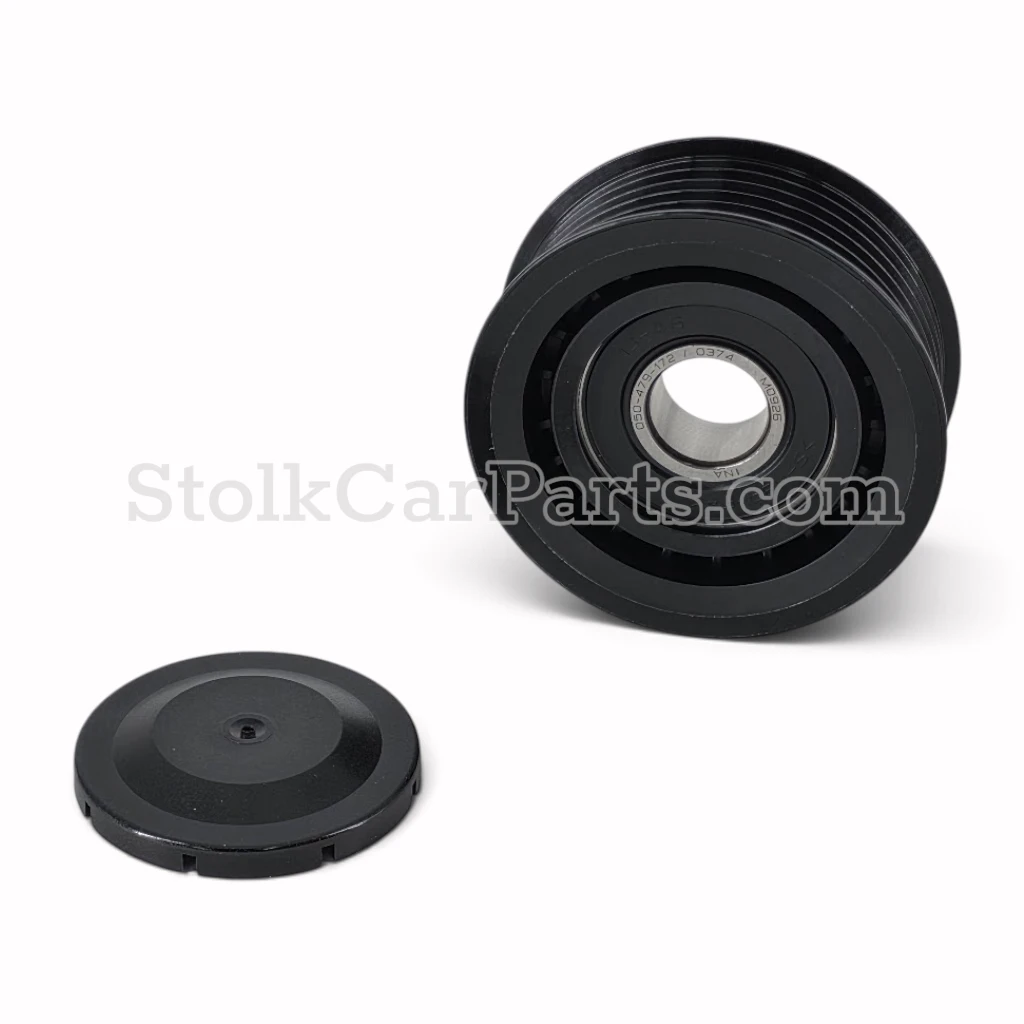

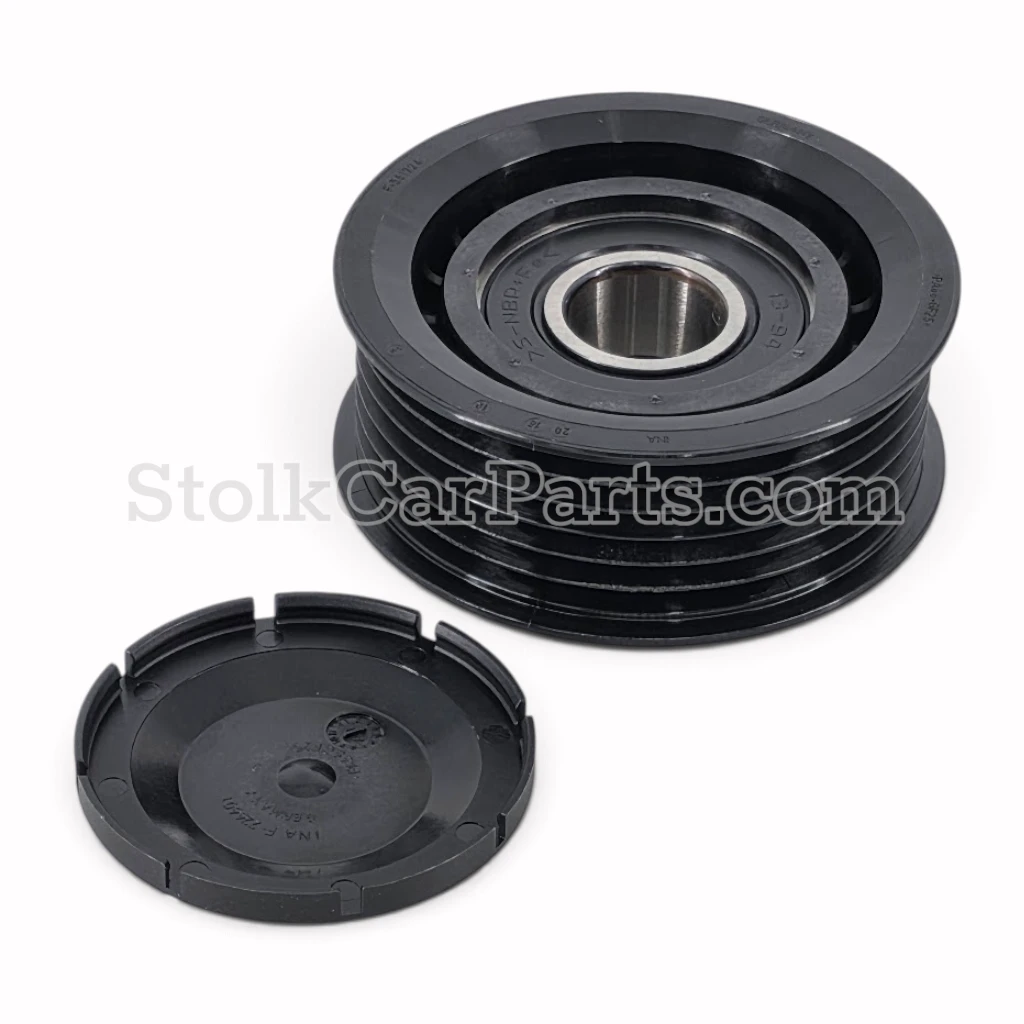

Ombuigrol – geleiderol voor de multi-V-riem van diverse Mercedes modellen met onder andere M112, M113 en M272 motoren. De rol zorgt voor een correcte geleiding van de multiriem en is uitgevoerd in kunststof en voorzien van een afdekkap.

Deze ombuigrol is door Mercedes bij een groot aantal motor- en chassisvarianten toegepast. Hieronder zijn de belangrijkste toepassingen per modelreeks weergegeven.

Passend für Mercedes-Modelle

R129

• SL 280 – 129.059 – M112.923 – 2.8 – 150 kW – 204 pk – benzine
• SL 320 – 129.064 – M112.943 – 3.2 – 165 kW – 224 pk – benzine
• SL 500 – 129.068 – M113.961 – 5.0 – 225 kW – 306 pk – benzine

R170

• SLK 320 – 170.465 – M112.947 – 3.2 – 160 kW – 218 pk – benzine
• SLK 32 AMG – 170.466 – M112.960 – 3.2 compressor – 260 kW – 354 pk – benzine

R171

• SLK 280 – 171.454 – M272.942 – 3.0 – 170 kW – 231 pk – benzine
• SLK 300 – 171.454 – M272.942 – 3.0 – 170 kW – 231 pk – benzine
• SLK 350 – 171.456 – M272.963 – 3.5 – 200 kW – 272 pk – benzine

R230

• SL 350 – 230.467 – M112.973 – 3.7 – benzine
• SL 350 – M272 – 3.5 – benzine
• SL 500 – M113 – 5.0 – benzine
• SL 55 AMG – M113 – 5.4 compressor – benzine

W202

• C 240 – 202.026 – M112.910 – 2.4 – benzine
• C 280 – 202.029 – M112.920 – 2.8 – benzine
• C 43 AMG – 202.033 – M113.944 – 4.3 – benzine

S202

• C 240 T – 202.086 – M112.910 – 2.4 – benzine
• C 280 T – 202.089 – M112.920 – 2.8 – benzine
• C 43 AMG T – 202.093 – M113 – 4.3 – benzine

W203

• C 240 – M112 – 2.6 – benzine
• C 320 – M112 – 3.2 – benzine
• C 32 AMG – M112 – 3.2 compressor – benzine
• C 55 AMG – M113 – 5.4 – benzine
• C 230 – 203.052 – M272.920 – 2.5 – 150 kW – 204 pk – benzine
• C 280 – 203.054 – M272.940 – 3.0 – 170 kW – 231 pk – benzine
• C 280 4MATIC – M272.941 – 3.0 – 170 kW – 231 pk – benzine
• C 350 – M272 – 3.5 – benzine

S203

• C 240 T – M112 – 2.6 – benzine
• C 320 T – M112 – 3.2 – benzine
• C 32 AMG T – M112 – 3.2 compressor – benzine
• C 55 AMG T – M113 – 5.4 – benzine
• C 230 T – 203.252 – M272.920 – 2.5 – 150 kW – 204 pk – benzine
• C 280 T – 203.254 – M272.940 – 3.0 – 170 kW – 231 pk – benzine
• C 280 T 4MATIC – M272.941 – 3.0 – 170 kW – 231 pk – benzine
• C 350 T – M272 – 3.5 – benzine

CL203

• C 230 Sportcoupé – 203.752 – M272.920 – 2.5 – 150 kW – 204 pk – benzine
• CLC 230 – CLC 250 – 203.752 – M272.920 – 2.5 – 150 kW – 204 pk – benzine
• C 320 Sportcoupé – M112 – 3.2 – benzine
• C 350 Sportcoupé – M272 – 3.5 – benzine

W204

• C 230 – M272.921 – 2.5 – 150 kW – 204 pk – benzine
• C 280 – M272 – 3.0 – 170 kW – 231 pk – benzine
• C 300 – M272 – 3.0 – benzine
• C 350 – M272 – 3.5 – benzine

S204

• C 230 T – M272.921 – 2.5 – 150 kW – 204 pk – benzine
• C 280 T – M272 – 3.0 – 170 kW – 231 pk – benzine
• C 300 T – M272 – 3.0 – benzine
• C 350 T – M272 – 3.5 – benzine

C208

• CLK 240 – M112 – 2.6 – benzine
• CLK 320 – M112 – 3.2 – benzine
• CLK 430 – M113 – 4.3 – benzine
• CLK 55 AMG – M113 – 5.4 – benzine

A208

• CLK 240 Cabriolet – M112 – 2.6 – benzine
• CLK 320 Cabriolet – M112 – 3.2 – benzine
• CLK 430 Cabriolet – M113 – 4.3 – benzine
• CLK 55 AMG Cabriolet – M113 – 5.4 – benzine

C209

• CLK 240 – M112 – 2.6 – benzine
• CLK 320 – M112 – 3.2 – benzine
• CLK 500 – M113 – 5.0 – benzine
• CLK 55 AMG – M113 – 5.4 – benzine
• CLK 280 – 209.354 – M272.940 – 3.0 – 170 kW – 231 pk – benzine
• CLK 350 – M272 – 3.5 – benzine

A209

• CLK 240 Cabriolet – M112 – 2.6 – benzine
• CLK 320 Cabriolet – M112 – 3.2 – benzine
• CLK 500 Cabriolet – M113 – 5.0 – benzine
• CLK 55 AMG Cabriolet – M113 – 5.4 – benzine
• CLK 280 Cabriolet – 209.454 – M272.940 – 3.0 – 170 kW – 231 pk – benzine
• CLK 350 Cabriolet – M272 – 3.5 – benzine

W210

• E 240 – M112 – 2.4 en 2.6 – benzine
• E 280 – M112 – 2.8 – benzine
• E 320 – M112 – 3.2 – benzine
• E 430 – M113 – 4.3 – benzine
• E 55 AMG – M113 – 5.4 – benzine

S210

• E 240 T – M112 – 2.4 en 2.6 – benzine
• E 280 T – M112 – 2.8 – benzine
• E 320 T – M112 – 3.2 – benzine
• E 430 T – M113 – 4.3 – benzine
• E 55 AMG T – M113 – 5.4 – benzine

W211

• E 240 – M112 – 2.6 – benzine
• E 320 – M112 – 3.2 – benzine
• E 500 – M113 – 5.0 – benzine
• E 55 AMG – M113 – 5.4 compressor – benzine
• E 230 – M272.922 – 2.5 – 150 kW – 204 pk – benzine
• E 280 – M272.943 – 3.0 – 170 kW – 231 pk – benzine
• E 280 4MATIC – M272.944 – 3.0 – 170 kW – 231 pk – benzine
• E 350 – M272.964 – 3.5 – 200 kW – 272 pk – benzine

S211

• E 240 T – M112 – 2.6 – benzine
• E 320 T – M112 – 3.2 – benzine
• E 500 T – M113 – 5.0 – benzine
• E 55 AMG T – M113 – 5.4 compressor – benzine
• E 230 T – M272.922 – 2.5 – 150 kW – 204 pk – benzine
• E 280 T – M272.943 – 3.0 – 170 kW – 231 pk – benzine
• E 280 T 4MATIC – M272.944 – 3.0 – 170 kW – 231 pk – benzine
• E 350 T – M272.964 – 3.5 – 200 kW – 272 pk – benzine

C207 – A207

• E 350 Coupé – M272 – 3.5 – benzine
• E 350 Cabriolet – M272 – 3.5 – benzine

C219

• CLS 280 – M272.943 – 3.0 – 170 kW – 231 pk – benzine
• CLS 300 – M272.943 – 3.0 – 170 kW – 231 pk – benzine
• CLS 350 – M272.964 – 3.5 – 200 kW – 272 pk – benzine
• CLS 500 – M113 – 5.0 – benzine
• CLS 55 AMG – M113 – 5.4 compressor – benzine

W220 – V220

• S 280 – M112 – 2.8 – benzine
• S 320 – M112 – 3.2 – benzine
• S 350 – M112 – 3.7 – benzine
• S 430 – M113 – 4.3 – benzine
• S 500 – M113 – 5.0 – benzine
• S 55 AMG – M113 – 5.4 – benzine

C215

• CL 500 – M113 – 5.0 – benzine
• CL 55 AMG – M113 – 5.4 – benzine

W221 – V221

• S 300 – M272 – 3.0 – benzine
• S 350 – M272.965 – 3.5 – 200 kW – 272 pk – benzine
• S 350 Lang – M272.965 – 3.5 – 200 kW – 272 pk – benzine

W163

• ML 320 – M112 – 3.2 – benzine
• ML 350 – M112 – 3.7 – benzine
• ML 430 – M113 – 4.3 – benzine
• ML 500 – M113 – 5.0 – benzine
• ML 55 AMG – M113 – 5.4 – benzine

W164

• ML 350 4MATIC – 164.186 – M272.967 – 3.5 – 200 kW – 272 pk – benzine
• ML 500 – M113 – 5.0 – benzine

X164

• GL 450 – M273 – benzine
• GL 500 – M273 – benzine

W251 – V251

• R 350 – M272.967 – 3.5 – 200 kW – 272 pk – benzine
• R 500 – M113 – 5.0 – benzine

W461 – W463

• G 320 – M112 – 3.2 – benzine
• G 500 – M113 – 5.0 – benzine
• G 55 AMG – M113 – 5.4 – benzine

W638

• Vito en V-Klasse – diverse uitvoeringen, afhankelijk van motor en riemaandrijving

W639

• Vito en Viano – diverse uitvoeringen, afhankelijk van motor en riemaandrijving

Sprinter B901 – B902 – B903 – B904 – B905 – B906 – B909

• Diverse Sprinter-uitvoeringen, afhankelijk van motor en riemaandrijving

Bevestigde motorfamilies

1. M112 – onder andere M112.910, M112.911, M112.912, M112.913, M112.914, M112.915, M112.916, M112.917, M112.920, M112.921, M112.922, M112.923, M112.940, M112.941, M112.942, M112.943, M112.944, M112.945, M112.946, M112.947, M112.949, M112.951, M112.953, M112.954, M112.955, M112.970, M112.972, M112.973, M112.975 en M112.976
2. M113 – onder andere M113.940, M113.941, M113.942, M113.943, M113.944, M113.948, M113.960, M113.961, M113.962, M113.963, M113.964, M113.965, M113.966, M113.967, M113.968, M113.969, M113.971, M113.980, M113.981, M113.982, M113.984, M113.986, M113.987, M113.988 en M113.989
3. M272 – onder andere M272.911, M272.920, M272.921, M272.922, M272.940, M272.941, M272.942, M272.943, M272.944, M272.946, M272.947, M272.960, M272.961, M272.963, M272.964, M272.965, M272.966, M272.967, M272.968, M272.969, M272.970, M272.971, M272.972, M272.975, M272.978, M272.979, M272.982, M272.983, M272.985 en M272.991

Weitere Informationen

1. Onderdeel: ombuigrol – geleiderol multiriem
2. Toepassing: multi-V-riem
3. Materiaal: kunststof
4. Außendurchmesser: 64 mm
5. Maximale buitendiameter: 69 mm
6. Breedte: 27 mm
7. Breedte rollencontactvlak: 25 mm
8. Diameter bevestigingspunt: 17 mm
9. Uitvoering: met afdekkap
10. Toegepast bij diverse Mercedes benzine- en dieselmotoren
11. Mercedes bevestigt toepassing bij een groot aantal M112, M113 en M272 motorvarianten

Installationshinweise

Controleer bij het vervangen van de ombuigrol ook de multi-V-riem, overige geleiderollen, spanrol en riemspanner zorgvuldig op slijtage, speling, beschadigingen en bijgeluiden. Versleten onderdelen kunnen de riemloop nadelig beïnvloeden en moeten indien nodig gelijktijdig worden vervangen.

Die Montage- und Installationsrichtlinien sowie die Werksvorgaben von Mercedes haben stets Vorrang.

Prüfen Sie vor dem Kauf und Einbau anhand von Fotos, Beschreibung und Spezifikationen, ob das Teil geeignet und gleichwertig ist; eingebaute oder gebrauchte Teile können nicht zurückgegeben werden.
