Engine oil coolant line under M117 – Mercedes R107 C107 500 SL 500 SLC

Description

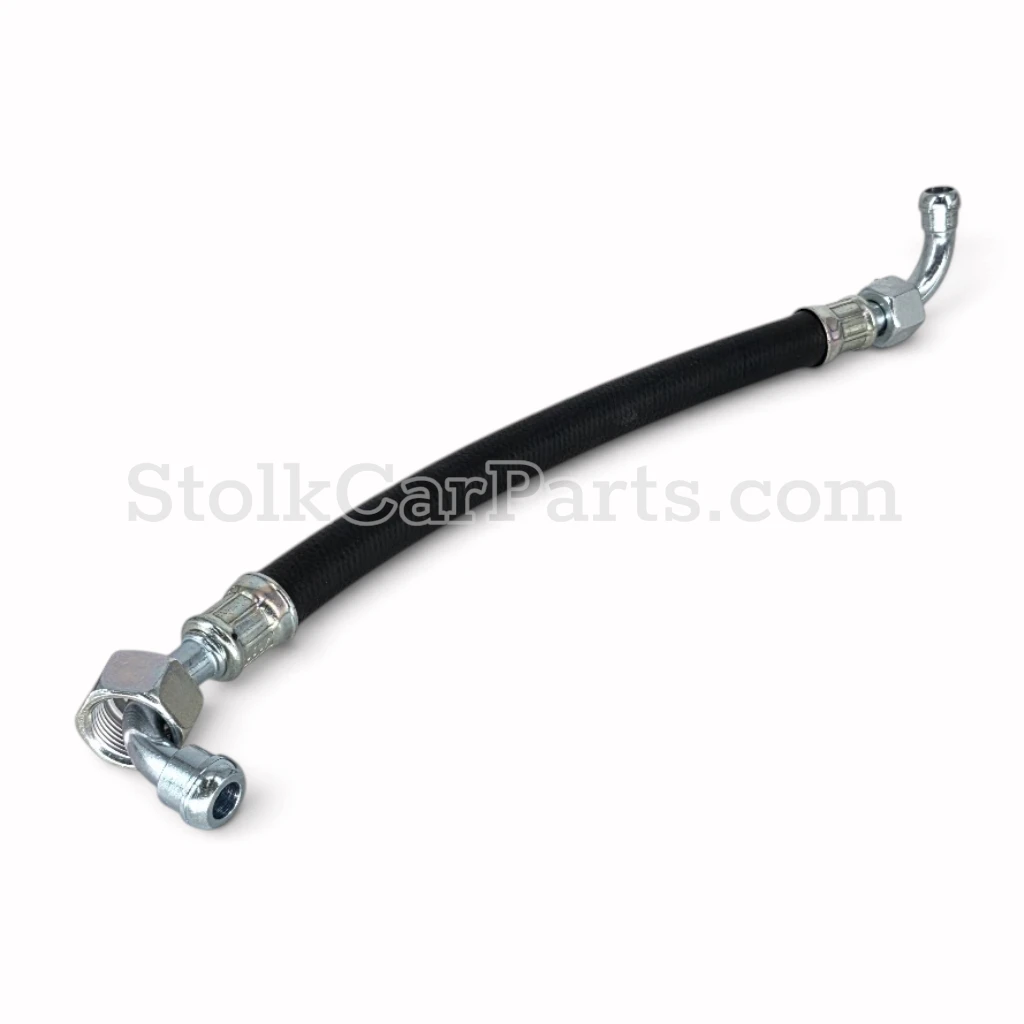

Engine oil coolant line underneath – Mercedes R107 C107 500 SL 500 SLC – M117 engine

Lower engine oil cooling line for the connection to the engine oil cooler on the Mercedes R107 and C107 with M117 5.0 liter engine.

The piping is fitted with connections. SW22 and SW27 and is intended for the early 5.0 liter versions.

Suitable for Mercedes models

R107
• 500 SL – M117 5.0 – early version

C107
• 500 SLC – M117 5.0 – early version

Specifications

1. Mercedes OEM number: 1171870382 – A1171870382
2. Execution: lower engine oil cooling line
3. Engine: M117 5.0
4. Connections: SW22 – SW27
5. Position: under
6. Execution: high quality of a OEM manufacturer

Additional information

1. Replaces the old engine oil cooling hose, the rubber of which can harden and become brittle due to age.
2. A torn or porous hose can cause engine oil leakage and loss of engine oil.
3. In the event of severe oil loss, there is a risk of engine damage.
4. When replacing, also check the other engine oil cooling hoses and connections for aging, cracks, and leakage.
5. A common problem is damage to the threads of the aluminum connections of the engine oil cooler. When unscrewing an old oil hose, the aluminum thread of the oil cooler can be damaged or stripped and remain trapped in the hose's screw coupling.
6. If the oil cooler's threads are damaged in this way, we advise to replace both the engine oil cooler and the relevant engine oil cooling hose. Do not mount a new hose on a damaged connection.
7. Therefore, always carefully check the threads of both the after disassembly engine oil cooler as the hose connection before new parts are installed.
8. After installation, carefully check the engine oil level and all connections for leaks.
9. Check the hoses for leaks again after the first ride.

Always check before purchase and installation whether the part is suitable and equivalent based on photos, description, and specifications; installed or used parts cannot be returned.
